PRODUCT SPECIFICATIONS

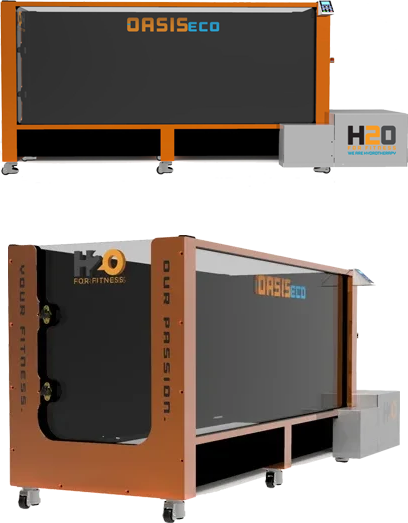

Oasis ECO
Equipment Specifications
- Treadmill Chamber
- Overall dimensions including casters – 88” L x 33.5” W x 38” H
- Outside chamber dimensions – 72” L x 27” W x 34” H
- Door entry from floor – 8” H
- Empty drain valve from floor – 5” H
- Inside chamber dimensions from belt – 69” L x 26” W x 30” H
- Usable belt dimensions – 54.5” L x 15.5” W
- Capacity – 250 gallons
- Green Option
- Water storage tank, pump, heater and filter
- Overall dimensions including casters – 75” L x 30” W x 45” H
- Capacity – 250 gallons
Technical Specifications
- Space
- Treadmill Chamber only – 50 sq. ft.
- Treadmill Chamber plus Green Option – 100 sq. ft.
- Electrical – 220V, 10 Amp, 60 Hz single phase dryer outlet plug-in
- Water – Tap water from a hose to fill per use
- Drain – Recommended 2” floor drain but not required to empty per use
- Floor loading – 2,500 lb. with water
- Variable speed motor with speeds from 0.5 to 5.0 mph in 0.1 increments
- Treadmill belt lifts up vertically
- Treadmill belt runs forwards/reverse and dry
- Two magnetic door locks
- Self-installation
- 1-year warranty for parts only
Oasis PRO
Equipment Specifications
- Treadmill Chamber
- Overall dimensions – 75” L x 31.5” W x 45” H
- Outside chamber dimensions – 75” L x 31.5” W x 44.6” H
- Door entry from floor – 6” H
- Inside chamber dimensions from belt – 75” L x 31.5” W x 35” H
- Usable belt dimensions – 65” L x 22” W
- Capacity – 380 gallons
- Equipment Stand – Includes pumps, heater and filter
- Dimensions – 36” L x 30” W x 53” H
- Electrical Box
- Dimensions – 24” L x 24” W x 9” D
- Water Storage Tank
- Dimensions – 65” L x 29” W x 68” H
- Capacity – 400 gallons
TECHNICAL SPECIFICATIONS
- Space – 150 sq. ft.
- Electrical – Dedicated 220V, 50 Amp, 60 Hz single phase
- Water – Cold water source to fill up water storage tank
- Drain – Recommended 2” floor drain but not required
- Floor loading – 4,000 lb. with water
- Water treatment with Chlorine/Bromine
- Variable speed motor with speeds from 0.2 to 9.0 mph in 0.1 increments
- Treadmill belt lifts up vertically
- Treadmill belt runs forwards/reverse and dry
- Two magnetic door locks
- Programmable touch screen
- Professionally installed
- 3-year warranty
